Wafer Check Valve, Butterfly Valve Supplier

Reliability, Backed by Facts

JRVAL specializes in Mid-to-High-End Butterfly & Wafer Check Valves. Our valves are strictly inspected according to ISO 5752. They have worked normally in the following harsh environments without leakage or damage:

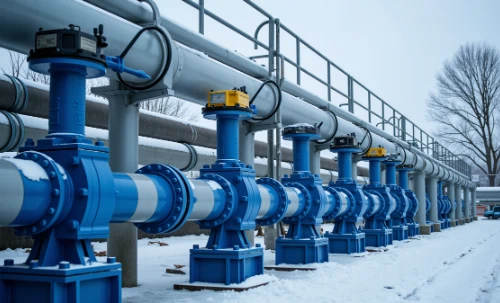

In Arctic oil fields (-50°C) and Siberian pipelines, standard butterfly valves fail due to brittle fracture from low-temperature embrittlement. Our LCC LC1 ultra-low-temperature steel addresses this through three innovations: -196°C cryogenic treatment combined with 72-hour tempering stabilizes microstructure; Ni/Mo alloy optimization enhances impact toughness by 30% at -196°C; and nanoscale grain boundary control prevents cold cracking during extreme contraction. These advancements enabled 100 thousands+ fault-free hours in Arctic LNG projects and the Siberian gas pipeline, redefining cold resistance standards.

Learn more

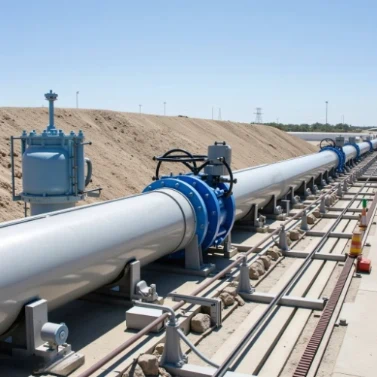

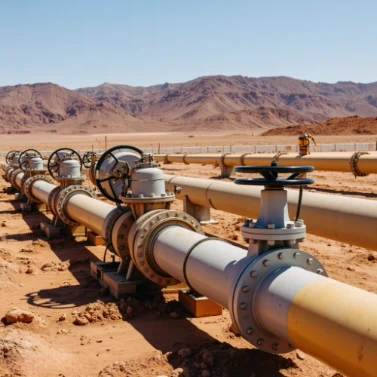

In Saudi Arabia’s Khurais oil fields, conventional seals softened at 160-180°C, becoming a major source of pipeline leakage. Our solution combines specialized FKM (e.g., 71% fluorine) with Y₂O₃ as an H₂S scavenger/stabilizer (enhancing thermal/chemical resistance), a 45° conical seal design improving stress distribution, and thousands of thermal shock cycles (180°C/12MPa) achieving zero leakage (API 598 compliant). Deployed in an initial batch of 320 valves, this technology delivered 19 months of continuous operation and saved $2.7 million in maintenance costs, proving reliability under extreme desert conditions.

Learn more

In Kazakhstan’s nitric acid pipelines (pH 0.5), conventional valves corroded within six months, costing $500,000+ annually. Our innovations include Hastelloy C-276 valve plates (15-16% Mo, 4-7% Cr) resisting 50-55% nitric acid up to 400°C, triple eccentric metal seals reducing torque by 30%, and PTFE with 25% glass fiber reinforcement (friction coefficient 0.05) withstands 10m/s acid flow. These solutions cut Kazakhstan’s annual maintenance costs by $500,000, doubling valve lifespan.

Learn more

Deep-sea oil & gas transport presents an ‘impossible triangle’: high pressure (>1000psi), H₂S corrosion, and fire safety demands. Our solution features valves engineered for these extremes. Utilizing advanced alloys and sealing designs (e.g., triple-offset, dual seals), our valves achieve zero leakage even above 1000psi. Proven in deep-sea projects, they deliver long service life and API 607/6FA certified fire safety, guaranteeing reliability and operational safety.

Learn more

Beyneu-Shymkent gas pipeline’s 2023 fire destroyed 612 valves, highlighting traditional butterfly valves’ flaws: methane permeation (5×10⁻⁵ cm³/cm²·s at 10MPa) and fire failure (8000cc/min leakage after 30min combustion). Our dual defense solution features API 609 fire-tested valves maintaining <500cc/min leakage at 750℃, and zero-leak seals with nano-coatings achieving <1×10⁻⁶ cm³/cm²·s permeation. In Kazakhstan, our valves prevented $120M explosion loss, extended maintenance intervals 10x.

Learn more

In Nigeria’s offshore oil sector, a refinery urgently needed 45°-angled butterfly valves with Hastelloy C-276 for 120°C sulfuric acid streams—no supplier could meet specs. JRVAL’s integrated foundry-to-assembly process delivered 24 units in 8 weeks: 3D-printed molds ensured ±0.1mm angular precision, while 22% molybdenum alloy resisted 3.2mm/year corrosion. Post-API 609 testing, zero leakage at 1500LB pressure cut annual maintenance costs by 35%.

Learn more

Learn About The Integrated Production Line

Low Pressure

Medium Pressure

High Pressure

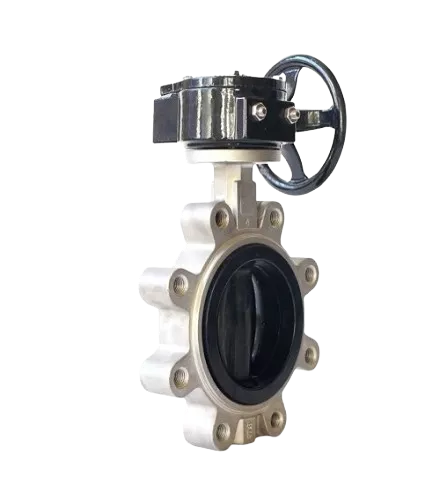

Lug Butterfly Valve

• Pressure： Designed for PN≤20bar applications like HVAC, water supply and drainage systems, and ventilation systems.

• Structure：Valve bodies engineered per GB/T 12238-2008 & GB 26640-201 standards ensure 3-5 year service life.

• Sealing：Bidirectional zero leakage below PN20.

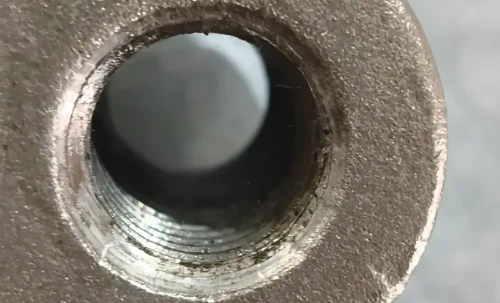

• Thread Integrity：Lug threads maintain 1-2 full pitch engagement. Manually tapped three times with new taps to prevent deformation.

• Patented Short Neck：Enables installation in confined spaces (e.g., ship compartments, 5G base stations).

• Customization：30,000+ molds in-house with 20-year foundry expertise; supports production to various international standards (API, AWWA) and custom size, material and other aspects.

Learn More

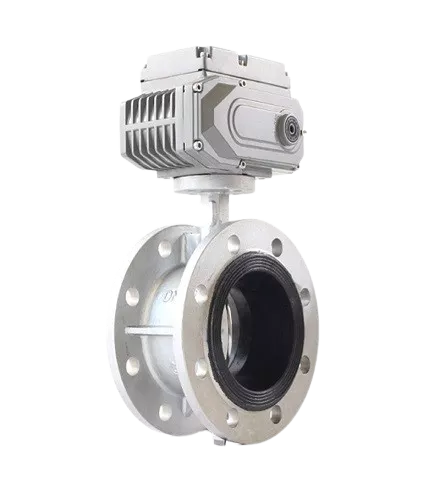

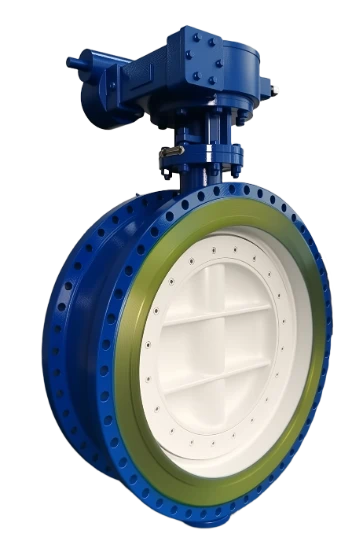

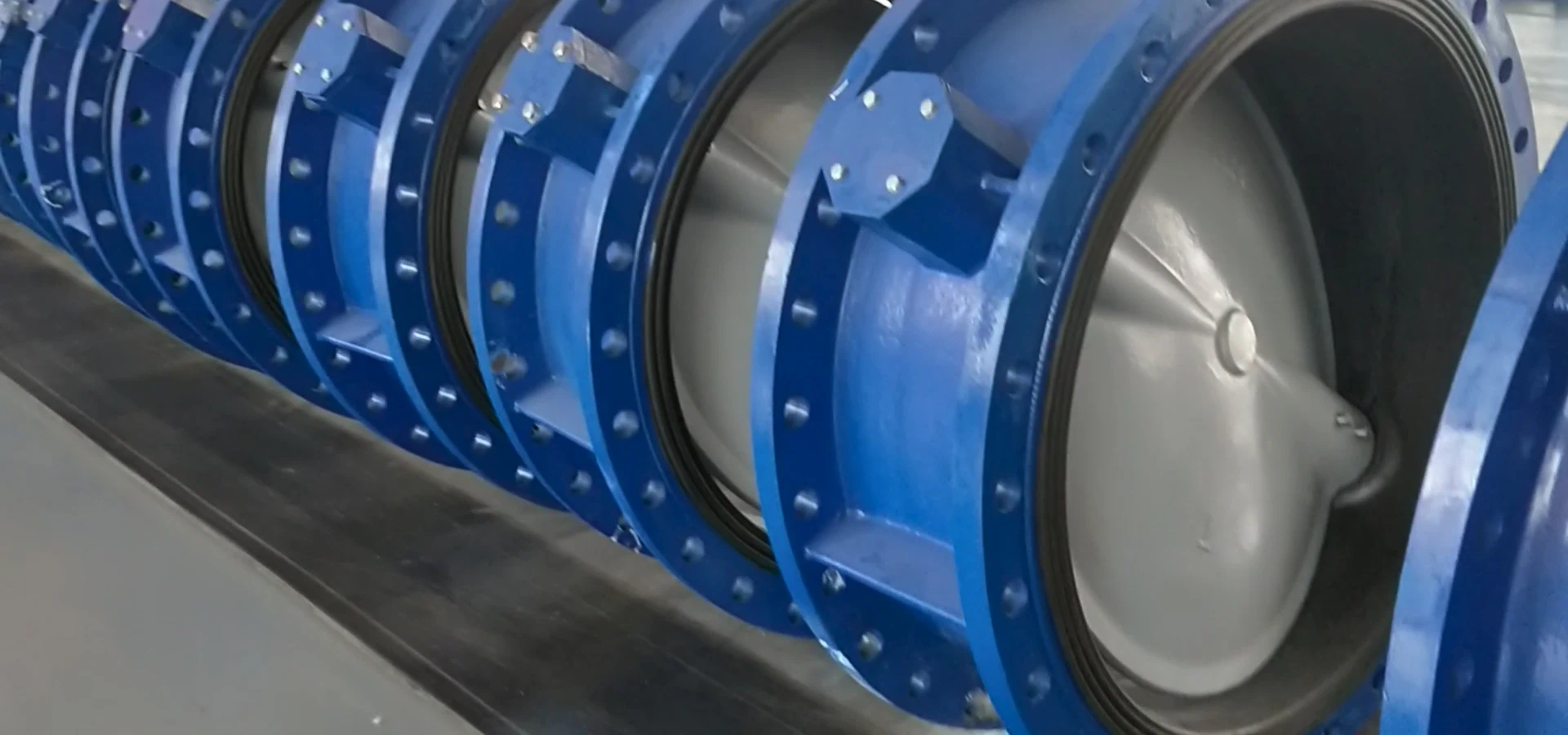

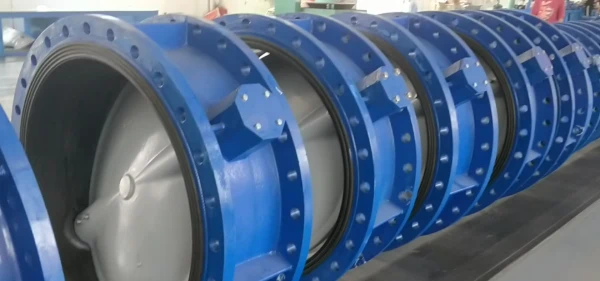

Flange Butterfly Valve

• Pressure： Designed for PN≤20bar applications like HVAC, water supply and drainage systems, and ventilation systems.

• Structure：Based on a proven, heavy-duty 1960s design optimized for maximum strength.

• Sealing：Bidirectional zero leakage below PN20.

•Superior Casting：Hot shell-cast valve bodies improve pressure capacity by 20% vs standard methods.

• Copper Sleeve Bearings：Provide wear/corrosion resistance, extending service life by 60-70%.

• High-Rubber Seats：Over 50% rubber content enhances durability by 1-2 years vs conventional seats.

• Customization：30,000+ molds in-house with 20-year foundry expertise; supports production to various international standards (API, AWWA) and custom size, material and other aspects.

Learn More

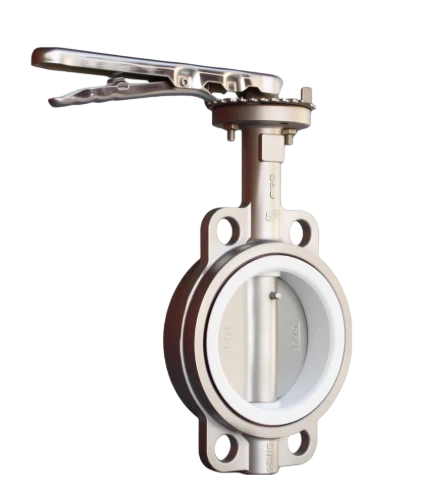

Wafer Butterfly Valve

• Pressure： Designed for PN≤20bar applications like HVAC, water supply and drainage systems, and ventilation systems.

• Structure：Valve bodies engineered per GB/T 12238-2008 & GB 26640-201 standards ensure 3-5 year service life.

• Sealing：Bidirectional zero leakage below PN20.

• Customization：30,000+ molds in-house with 20-year foundry expertise; supports production to various international standards (API, AWWA) and custom size, material and other aspects.

• Certified Quality：Fully compliant with API 609 and EN 12266 standards, featuring ASTM A450 GR 2B surface finish for corrosion resistance.

Learn More

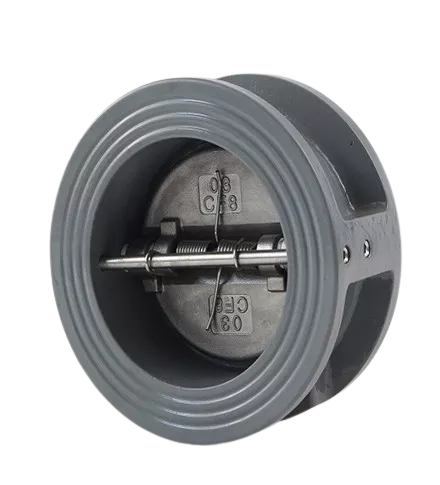

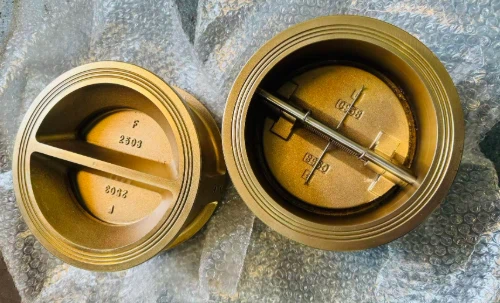

Wafer Check Valve

• Pressure： Designed for PN≤20bar applications like HVAC, water supply and drainage systems, and ventilation systems.

• Structure：Valve bodies engineered per GB/T 12238-2008 & GB 26640-201 standards ensure 3-5 year service life.

• Instant Sealing：0 leakage with 0.5-second closure using hyper-responsive elastomers.

• Customization：30,000+ molds in-house with 20-year foundry expertise; supports production to various international standards (API, AWWA) and custom size, material and other aspects.

• Space-Saving：Compact design simplifies tight-space installations.

• Cost Reduction: Corrosion-resistant bodies (pH 1-14 compatible) and self-scouring disc lower maintenance costs by 40%.：

Learn More

High Performance Butterfly Valve

• Pressure：Optimized for PN25-64bar industrial pipelines (chemical processing, power plants).

• Durability：900,000-cycle design with low-torque operation.

• Sealing：RPTFE seats maintain zero leakage even in vacuum (-0.1MPa).

• Standards Compliance： GB/T 12238-2008 certified body thickness; fire-safe API 607 option available.

• High-Performance Features：Anti-blowout stem design, interchangeable ISO 5211 mounting pads.

• Material Upgrade Path：CF8M stainless steel and reinforced PTFE seats for corrosive media. Balances operational efficiency with mid-range pressure demands.

Learn More

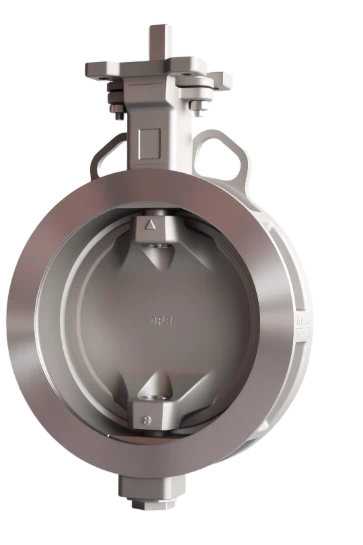

Triple Offset Butterfly Valve

• Pressure：Engineered for PN≥100bar critical applications (oil/gas injection, chemical reactors).

• Precision Construction：Disc/body thickness optimized via FEA analysis; materials meet ISO 5752 specifications.

• Sealing Innovation：Proprietary RPTFE+15% Carbon composite seats with 1,500 PSI rating; zero-leakage certification per API 598.

• Special Features：Double eccentric design reduces wear; fire-safe API 607/6FA compliance.

• Material Grades：Available in ASTM A352 LCC, Inconel 625, and XM-19 stainless steel.

• Testing：100% hydrostatic testing at 1.5x PN. The ultimate solution for extreme-pressure containment with soft-seal reliability.

Learn More

ISO9001

Bureau Veritas

Conformité Européenne

Own Foundry

Material & Size Can Be Customized

Key Industries

Butterfly Valves: Universal Flow Control for Every Industry

Seawater Desalination

Water Supply & Wastewater Treatment

Shipbuilding Industry

Mining & Metals

Petrochemical Industry

Energy & Semiconductors

The Epic of Steel

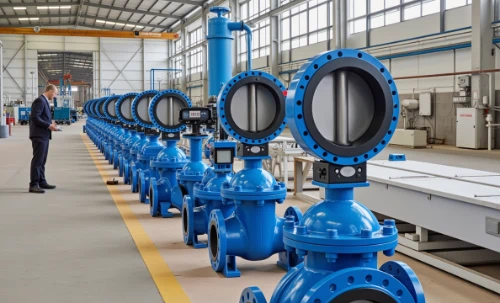

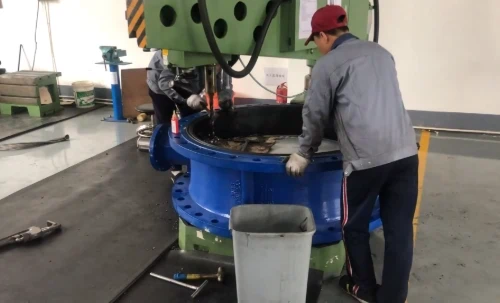

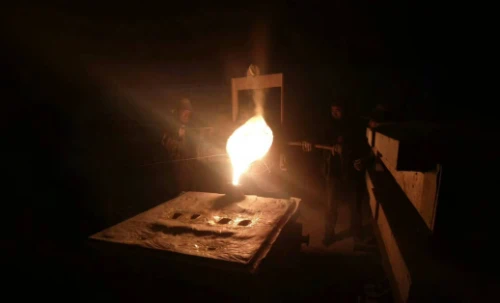

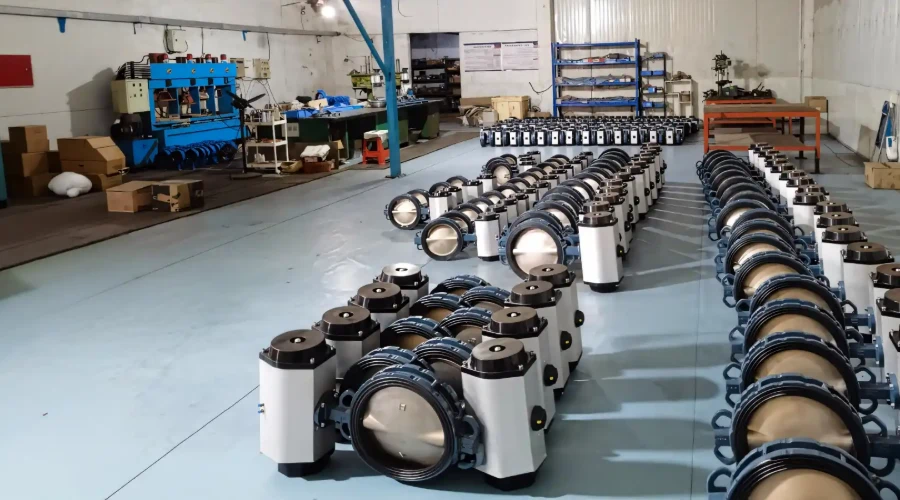

JRVAL is the vertically integrated source factory specializing in the casting, machining and assembly of steel butterfly valves and wafer check valves. It has obtained ISO9001-2008/ BV/ CE certification to ensure that the butterfly valve material, thickness, size, casting process and heat treatment process meet the international standards for high-end butterfly valve production. We have more than 2,000 sets of independent machining process tooling equipment for both standardized and customized butterfly valve solutions, allowing for easy assembly under various conditions.

2004

The year the company was founded

5000

+m²

Manufacturing area

20

+

Years of Foundry experience

30,000

+

The quantity of precision casting molds

Learn more

The valve appears to be well made and shows superb craftsmanship.The product quality is very good, and the delivery time is so fast, also the sales are very professional and enthusiastic. I will continue to purchase in the future

Wakasa Maki,Japan

I have successful business experience in this company.They delivered exactly on time as promised.Very satisfied with customer service and products!Excellent customer service!

Wells Melinda,Spain

Your valve is really good, it has solved a lot of trouble for me, and it doesn't leak water. It can also be customized.

Li Ning Yeoh,South Korea
